AFS01
Designed with the real world in mind.
Autarchic Vision System
Features
- Driver vision system for retroffitting in various vehicles
AFS01
Overview

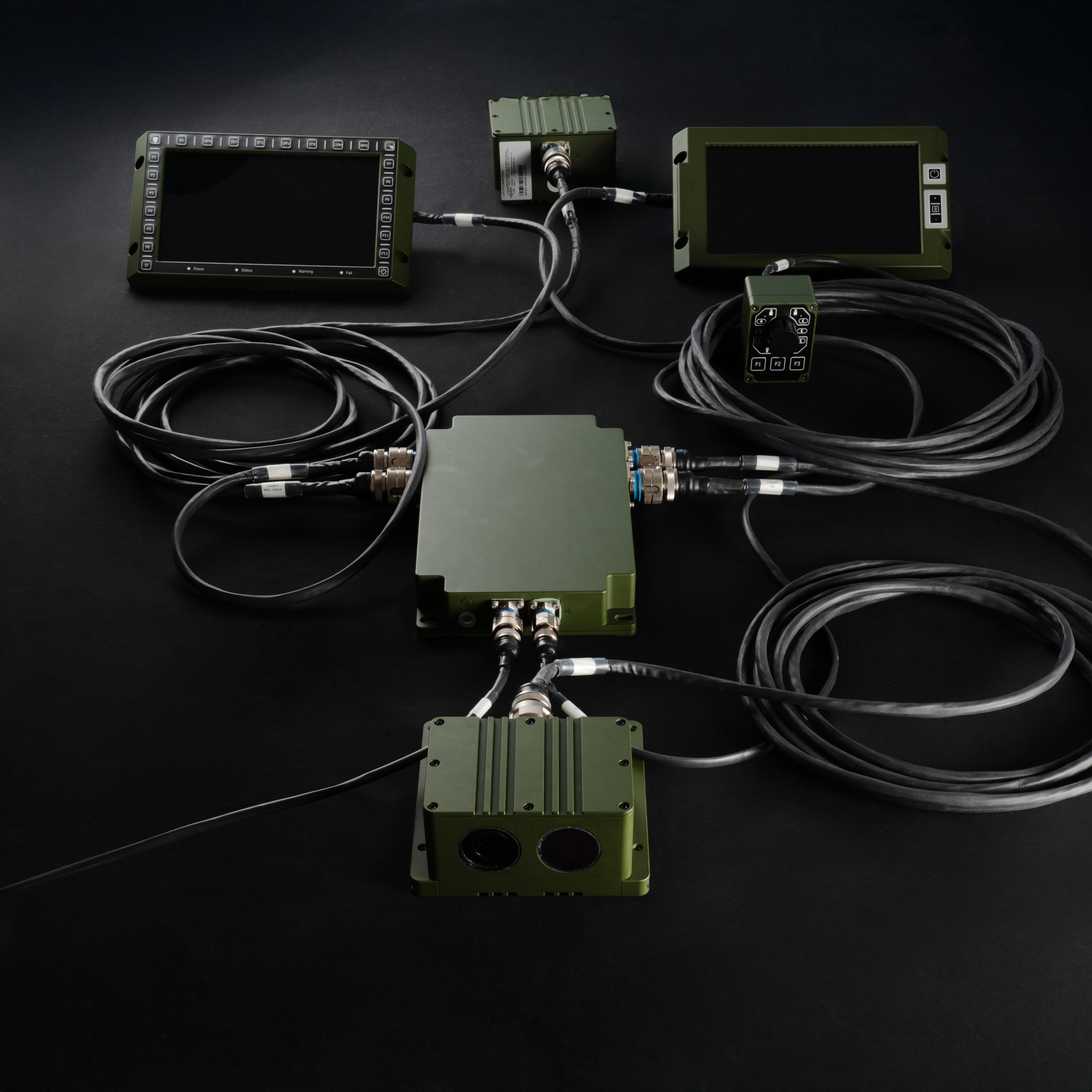

The AFS01 is a autarchic driver vision system for retrofitting in various vehicles. The system consists of two displays, two dual cameras, a video distributor, and a control unit.
- The driver vision system has a dual camera for the front and a dual camera for the rear.
- The driver vision system can be used at night or in the dark as well as during the day, as the dual cameras consist of a day camera and a night vision camera.
- Two displays are used to show the different camera images.
- The video distributor switches the various camera images to the two displays and supplies the cameras and displays with power.
- The only interface to the vehicle is the vehicle electrical system (power supply).
- This is connected to the video distributor.
Specifications
Day Camera
- Sensor: CMOS
- Resolution: 1920×1080
- Video-Output: HD-SDI
Night Camera
- Sensor: Uncooled Thermal Imager
- Resolution: 640×480 / 1024×768
- Frequency Band: 8-14μm
- Video-Output: CVBS / HD-SDI
Power Supply
- Supply voltage: 16…32 VDC
- Power consumption: max. 20W @ 28VDC
Mounting
- Mount: 4x M8
Housing
- Material: Aluminium Alloy
- Powder coated RAL 6031
- Width: 140 mm
- Heigth: 79 mm
- Depth w/o Connector: 100 mm
- Weight: approx. < 1.5 kg
Controls and Communication
- Communication: COM to VVB
Connector
- Connector X1: Combined Input
- Type: D38999/20FD97
- Video-Input: Coax contact 75Ω Power
- Input: Pin (Male) COM-Input Pin (Male)
